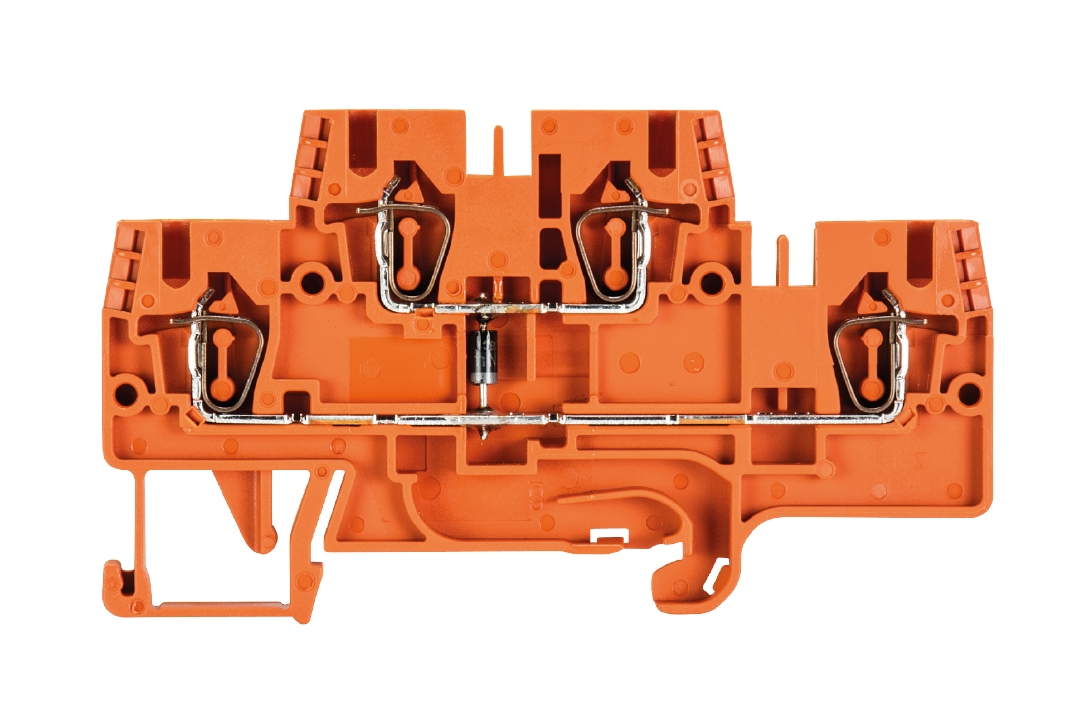

multi-tier terminal WKFN 2,5 E/35/GU

NO LONGER AVAILABLE

Article number 56.703.8155.9

Duo Feed-through terminal with tension spring connection for mounting on TS 35, nominal cross section: 2.5 mm², width: 5 mm, color: orange

Buy from a retailer

Choose at Wieland, order from your retailer. Find the retail partner that stocks the Wieland articles you want.

Buy from a retailer

Overview

Technical Data

Accessories

Downloads

Retailer

commercial data

article number	56.703.8155.9
article description	multi-tier terminal WKFN 2,5 E/35/GU
EAN	4015573748040
Minimum order quantitiy	100
country of origin	DE
customs tariff number	85369010

packaging dimensions

length packed	355 mm
width packed	140 mm
height packed	55 mm
gross weight packed	1245 g
volume packed	2734 ccm
net weight single part	11.4 g
volume single part	27.34 ccm
packaging	cardboard
packaging quantity	100 piece(s)

certificates / approvals

general

nominal cross section	2.5 mm²
color	orange
number of levels	2
number of clamp positions per level	2
width/grid dimension	5 mm
insulating housing	PA666
inflammability class of insulation material acc. with UL94	V0
mounting method	DIN rail (top hat rail) 35/7.5 mm
terminal blocks for electrical installations	yes
type of component	diode
number of clamp positions per level	2
mounting method	DIN rail (top hat rail) 35/7.5 mm
inflammability class of insulation material acc. with UL94	V0
terminal blocks for electrical installations	yes

technical data

rated current	1 A
rated voltage	500 V
pollution degree	3
closing plate required	yes
length	82.2 mm
type of insulation material	thermoplastic
operating temperature	-40 bis 55 °C

connection data

connection type 2	spring clamp connection
connection type 1	spring clamp connection
minimum cross section solid	0.14 mm²
maximum cross section solid	4 mm²
minimum cross section fine stranded	0.14 mm²
maximum cross section fine stranded	2.5 mm²
wire strip length	11 mm

technical data UL/CSA

cross section UL	22-12 AWG
current factory wiring	1 A
current field wiring	1 A
cross section CSA	22-12 AWG
voltage CSA	600 V
current CSA	20 A

classification

ETIM 5.0	component terminal block
ECLASS 8.1	component terminal block
ETIM 4.0	component terminal block
ETIM 3.0	component terminal block
ETIM 6.0	EC000903
ETIM 7.0	EC000903
ECLASS 11	27141127
ETIM 8.0	EC000903
ETIM 9.0	EC000903

product compliance

ROHS conformity status	compliant
REACH-SVHC conformity status	compliant

Accessories

Article number	Article-type description	Price	Quantity
Z7.280.6327.0	jumper bar IVBWKF 2,5- 3
98.360.0000.0	mounting rail TS 35x15-2,3 UNPERF - l:2000mm
98.370.1000.0	mounting rail TS 35x15 PERF 15mm - l:2000mm
Z7.280.6227.0	jumper bar IVBWKF 2,5- 2
Z7.280.7027.0	jumper bar IVBWKF 2,5- 10
Z7.280.6727.0	jumper bar IVBWKF 2,5- 7
98.370.0000.0	mounting rail TS 35x15 UNPERF - l:2000mm
98.300.1900.0	mounting rail TS 35x7,5 PERF 25mm - l:2000mm
07.312.7455.0	partition TWFN 2,5 E/35
98.380.0000.0	mounting rail TS 35x15-1,5 UNPERF CU - l:2000mm
Z7.280.6427.0	jumper bar IVBWKF 2,5- 4
Z7.280.8027.0	jumper bar IVBWKF 2,5- 20
07.312.7355.0	end plate APFN 2,5 E/35
98.300.1800.0	mounting rail TS 35x7,5 PERF 18mm - l:2000mm
Z7.280.6627.0	jumper bar IVBWKF 2,5- 6
Z7.280.6827.0	jumper bar IVBWKF 2,5- 8
98.300.1000.0	mounting rail TS 35x7,5 PERF 15mm - l:2000mm
Z7.280.7227.0	jumper bar IVBWKF 2,5- 12
Z7.280.7127.0	jumper bar IVBWKF 2,5- 11
98.300.0000.0	mounting rail TS 35x7,5 UNPERF - l:2000mm
Z7.280.6927.0	jumper bar IVBWKF 2,5- 9
Z7.280.6527.0	jumper bar IVBWKF 2,5- 5
