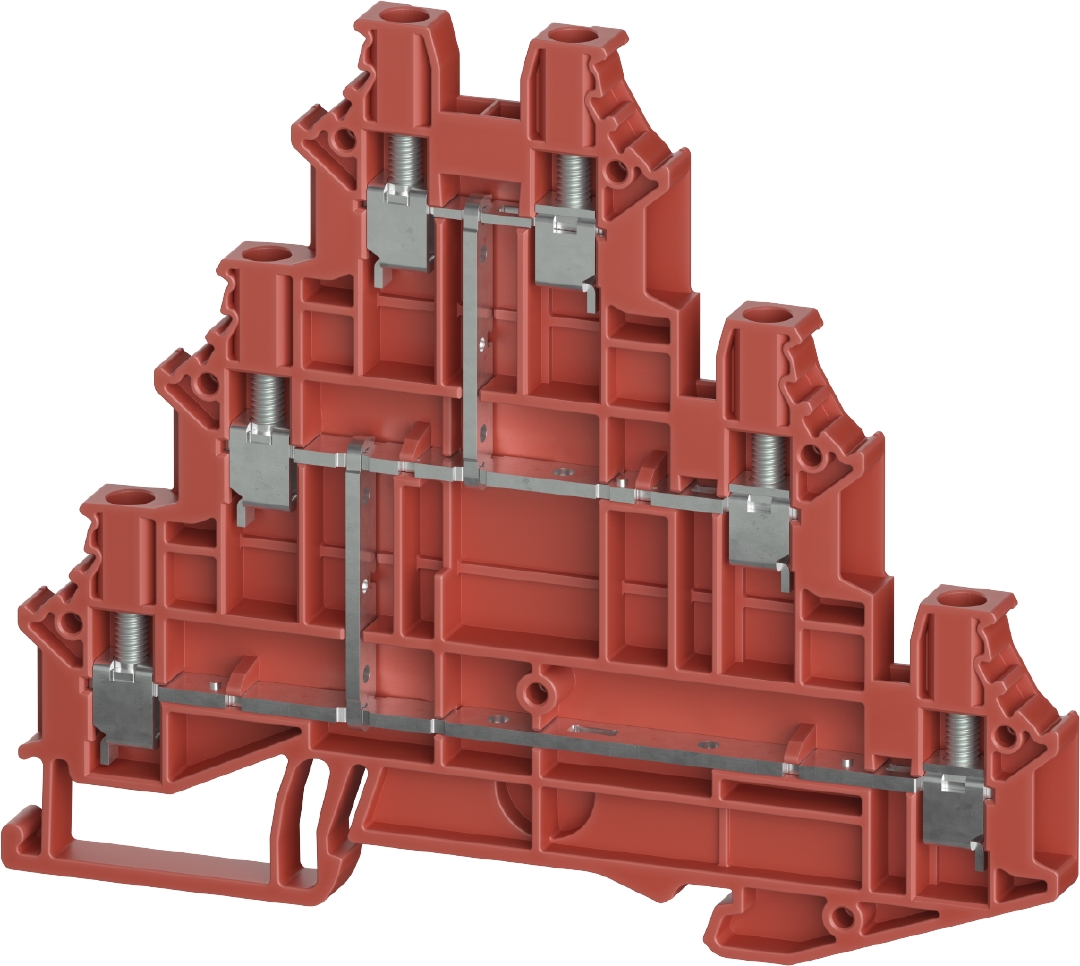

multi-tier terminal WTN 2.5 E3 VB RT
Article number 5D.S03.6855.5
multi-tier terminal WTN 2.5 E3 VB RT rated voltage 1000 V, rated current 24 A, screw connection, number of levels 3, number of clamp positions per level 2, nominal cross section 2.5 mm², connectable conductor cross section fine stranded without cable end sleeve 0,34mm² - 2,5mm², mounting method DIN rail (top hat rail), color red, width/grid dimension 5.1 mm, inflammability class of insulation material acc. with ul94 V0
commercial data
|
article number
|
5D.S03.6855.5
|
|---|---|
|
article description
|
multi-tier terminal WTN 2.5 E3 VB RT
|
|
EAN
|
4049088724695
|
|
Minimum order quantitiy
|
50
|
|
country of origin
|
CN
|
|
customs tariff number
|
85369010
|
packaging dimensions
|
length packed
|
205 mm
|
|---|---|
|
width packed
|
135 mm
|
|
height packed
|
78 mm
|
|
gross weight packed
|
969 g
|
|
volume packed
|
2159 ccm
|
|
net weight single part
|
18 g
|
|
volume single part
|
43.18 ccm
|
|
packaging
|
cardboard
|
|
packaging quantity
|
50 piece(s)
|
certificates / approvals
general
|
nominal cross section
|
2.5 mm²
|
|---|---|
|
color
|
red
|
|
number of levels
|
3
|
|
number of clamp positions per level
|
2
|
|
width/grid dimension
|
5.1 mm
|
|
insulating housing
|
PA
|
|
inflammability class of insulation material acc. with UL94
|
V0
|
|
mounting method
|
DIN rail (top hat rail)
|
|
connection type
|
screw connection
|
|
number of clamp positions per level
|
2
|
|
mounting method
|
DIN rail (top hat rail)
|
|
inflammability class of insulation material acc. with UL94
|
V0
|
|
halogen free
|
yes
|
technical data
|
rated current
|
24 A
|
|---|---|
|
rated voltage
|
1000 V
|
|
rated impulse voltage
|
8 kV
|
|
pollution degree
|
3
|
|
closing plate required
|
yes
|
|
length
|
90.7 mm
|
|
type of insulation material
|
thermoplastic
|
|
width
|
5.1 mm
|
|
height
|
77.3 mm
|
|
operating temperature
|
-40 - 55 °C
|
connection data
|
connection type
|
screw connection
|
|---|---|
|
connection type 2
|
screw connection
|
|
connection type 1
|
screw connection
|
|
minimum cross section solid
|
0.34 mm²
|
|
maximum cross section solid
|
4 mm²
|
|
minimum cross section fine stranded
|
0.34 mm²
|
|
maximum cross section fine stranded
|
2.5 mm²
|
|
minumum conductor cross section (flex., stranded) with cable end sleeve
|
0.25 mm²
|
|
maximum conductor cross section (flex., stranded) with cable end sleeve
|
2.5 mm²
|
|
wire strip length
|
10 mm
|
|
torque conductor mounting
|
0.4 Nm
|
technical data UL/CSA
|
cross section UL
|
22-12 AWG
|
|---|---|
|
voltage UL
|
600 V
|
|
current factory wiring
|
20 A
|
|
current field wiring
|
20 A
|
|
cross section CSA
|
22-12 AWG
|
|
voltage CSA
|
600 V
|
|
current CSA
|
20 A
|
classification
|
ETIM 9.0
|
EC000897
|
|---|
product compliance
|
ROHS conformity status
|
compliant
|
|---|---|
|
REACH-SVHC conformity status
|
compliant
|
Accessories
| Article number | Article-type description | Price | Quantity |
|---|---|---|---|
| 0D.S03.2455.0 | end plate APWTN 2.5/4 E3L |
|
|
| 0D.S03.6955.9 | lever LVWTN 2.5/4 |
|
|
| 0D.202.7281.0 | marking strips WML 9.8/60 |
|
|
| 0D.S23.3427.0 | insert bridge IVB WTN 2.5-4 IN |
|
|
| 0D.S23.3227.0 | insert bridge IVB WTN 2.5-2 IN |
|
|
| 0D.S23.4027.0 | insert bridge IVB WTN 2.5-10 IN |
|
|
| 0D.S13.3427.5 | jumper bar IVB WTN 2.5P4 |
|
|
| 0D.S03.3327.5 | jumper bar IVB WTN 2,5-3 |
|
|
| 0D.S03.3527.5 | jumper bar IVB WTN 2,5-5 |
|
|
| 0D.S13.3527.5 | jumper bar IVB WTN 2.5P5 |
|
|
| 0D.203.7056.0 | marking plate WMP 5,10-10 |
|
|
| 0D.S03.5027.5 | jumper bar IVB WTN 2,5-20 |
|
|
| 0D.S13.3327.5 | jumper bar IVB WTN 2.5P3 |
|
|
| 0D.S03.3427.5 | jumper bar IVB WTN 2,5-4 |
|
|
| 0D.S03.3227.5 | jumper bar IVB WTN 2,5-2 |
|
|
| 0D.S13.3227.5 | jumper bar IVB WTN 2.5P2 |
|
|
| 0D.S23.3327.0 | insert bridge IVB WTN 2.5-3 IN |
|
|
| 0D.S04.1055.9 | partition TW 001 WTN |
|
|
| 0D.S03.4027.5 | jumper bar IVB WTN 2,5-10 |
|
|
| 0D.S23.3527.0 | insert bridge IVB WTN 2.5-5 IN |
|
|
| 0D.S03.5955.5 | test plug PS 2.5 WTN |
|
|
