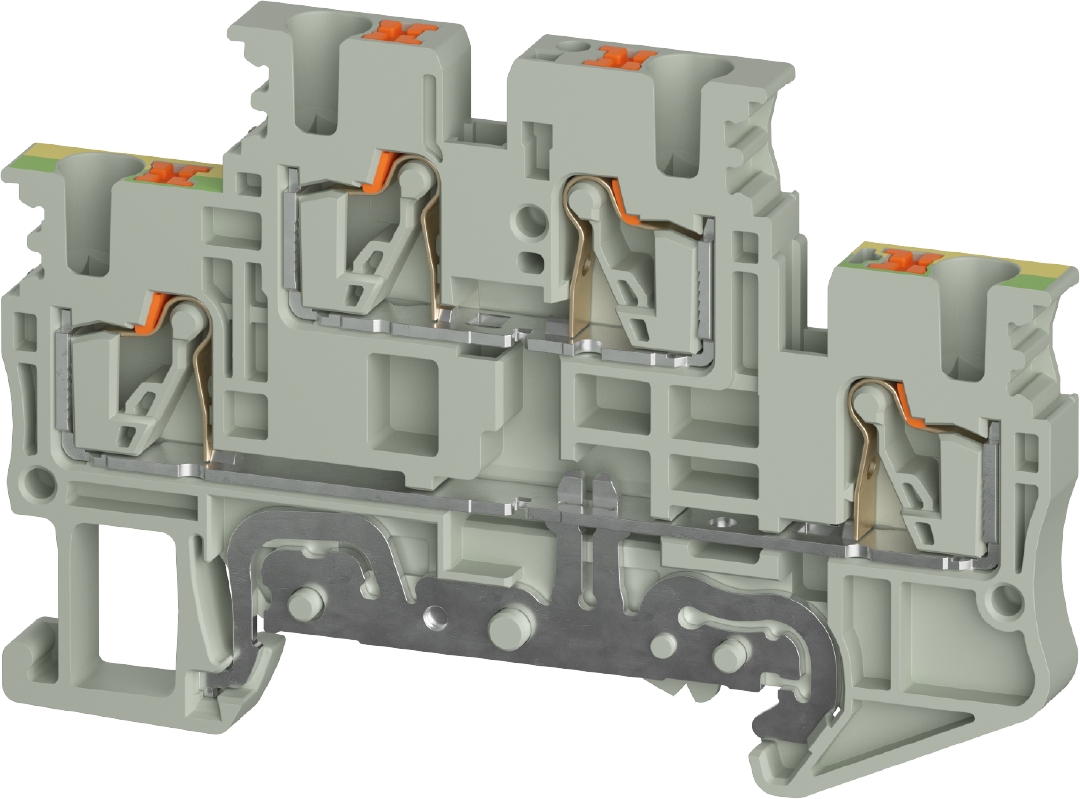

multi-tier terminal WTPN 2.5 EL PE
Article number 5D.203.6755.0
multi-tier terminal WTPN 2.5 EL PE rated voltage 500 V, rated current 22 A, push-In connection//true, number of levels 2, number of clamp positions per level 4, nominal cross section 2.5 mm², connectable conductor cross section fine stranded without cable end sleeve 0,14mm² - 2,5mm², mounting method DIN rail (top hat rail), color grey, width/grid dimension 5.1 mm, inflammability class of insulation material acc. with ul94 V0, terminal blocks for electrical installations yes
Buy from a retailer
Choose at Wieland, order from your retailer. Find the retail partner that stocks the Wieland articles you want.
Buy from a retailerOverview
Technical Data
Accessories
Downloads
Retailer
commercial data
| article number | 5D.203.6755.0 |
|---|---|
| article description | multi-tier terminal WTPN 2.5 EL PE |
| EAN | 4049088719592 |
| Minimum order quantitiy | 50 |
| country of origin | CN |
| customs tariff number | 85369010 |
packaging dimensions
| length packed | 180 mm |
|---|---|
| width packed | 126 mm |
| height packed | 54 mm |
| gross weight packed | 636 g |
| volume packed | 1224.72 ccm |
| net weight single part | 11.8 g |
| volume single part | 24.494 ccm |
| packaging | cardboard |
| packaging quantity | 50 piece(s) |
