Distribution boxes – gesis® RAN

From conceptual design to tendering - Our experienced employees also accompany your project on site

• Dimensioning planning
• Design and definition of electrical interfaces
• Installation planning
• Fastening design

Where necessary, we work with our customers to draft the necessary tender texts.

• For public tenders in neutral wording
• In text form (.txt or .docx)
• In GAEB
• By arrangement also in other formats

The necessary documents for the distributors are made available digitally - also in other forms at the customer's request. This saves our customers a lot of detailed work.

• Mechanical assembly diagrams
• Electrical wiring diagrams
• Parts lists

Functional components such as protective switchgear, automation devices and power supplies must be installed in the distribution board.

• Many of our customers, especially from the building automation industry, place their electronics at
• Wieland supplements the distributors with active and passive components to form functional units

To meet construction schedules, we can pick the manifolds along with other components and deliver them to the job site on time.

• For predefined units, e.g. Floors
• Distribution Boxes including external cables, connectors, etc.
• Pre-assembled, external field devices (valve actuators, dew point monitors...)

The distribution boxes are manufactured and unit-tested in accordance with the applicable standards and guidelines.

• Unit testing
• CE marking on customer request
• EMC consideration
• IP protection type consideration

Labeling inputs/outputs and applying labels or identification numbers is essential for the creation and operation of equipment.

• Lettering individual
• Application of e.g. Built-in or preset device IDs
• Application of AKS
• Barcode or QR code creation

• Decentralized installation enables fast commissioning thanks to simple project planning and short installation times.
• Retrofits are flexible thanks to simple and future-proof structures.
• More net usable space, due to smaller equipment rooms. Thanks to decentralization, the automation electronics are not located in the main distribution.
• Three-phase power supply up to just before the consumer, this increases energy efficiency.
• Room automation devices are located in the respective room, fuse elements (MCB/RCB) directly on site.

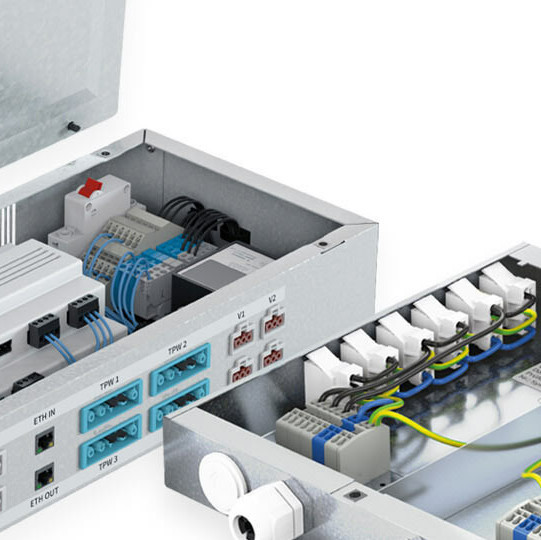

A distribution board is a switchgear combination according to IEC 61439. The Wieland distribution boxes accommodate all required components of the electrical installation as well as building automation on a project-specific basis. The distributor boxes can be viewed as a black box that provides the appropriate interfaces to the field and management levels.

• Unlike conventional installation, you can lay the lines first and install the distribution box at a later time.
• The robust sheet steel housing protects the sensitive electronic built-in devices even in a harsh construction environment.
• The manifolds can be mounted on walls, ceilings and floors. For easy mounting, the attachment is made by means of keyholes placed in tabs.
• The pluggability of the installation makes it fast, easy and safe.
• Mismating is avoided thanks to the coding of the installation connector systems.

Our distribution boxes are CE certified.

Opening the system manifold does not invalidate the CE marking. However, if you make changes to the distributor, such as to the conductor cross-sections, the certification will expire.

The distribution boxes are subject to a type test, which includes EMC, temperature, IP, the IK test and the corrosion test. In addition, a routine test is carried out, which consists of a visual inspection, a short-circuit and polarity reversal test and a continuity test.

A functional test can be performed at the customer's request.

• If required, the distributors are delivered to the construction site fully parameterized and can be put into operation directly without any further on-site measures.
• The functional test is carried out by means of test plugs.
• The pluggability of our distribution boxes means that individual components can be easily replaced.

Due to our pluggable electrical installation with the gesis® installation connector system, the distribution boxes can be replaced easily and quickly. The existing infrastructure is used for this purpose.

1. IDEA
Innovative solutions are required for future-oriented building planning. A decentralized and possibly pluggable installation offers you a lot of flexibility and should be considered.
2. CONCEPTION
For presentation to builders or decision makers, we will be happy to prepare a concept for you.

Technical Contact:
Tel. +49 951 9324-996  / E-Mail: building@wieland-electric.com
Contact your local contact via our head office
Tel. +49 951 9324-0  / E-Mail: info@wieland-electric.com

3. CONCRETIZATION
You are already in the preliminary/design phase: We support you in the implementation of your concrete planning up to the cost estimate and finally to the tender.

4.TENDERING AND QUOTATION
As soon as the tender is on the market, the executing companies receive the quotations from us - and can apply for the execution .

5. ORDER
The executing company confirms the correctness of the planned execution by signing the manifold plans .The production of the manifolds is initiated.

6. DELIVERY
The piece-checked distributors, possibly with additional commissioning, are delivered to the desired address as agreed.

7. FURTHER SERVICE
If further aspects should arise, our team on site and in Bamberg is available foryouat any time .


What does a building installation with our products mean for you?

1. BASIC OVERVIEW
First of all, a few basic questions should be clarified.

• What functions are to be integrated?
• What electronics will be used?
• Which room units will be controlled?
• What construction space is available or will be needed?
• Will the plant installation be pluggable?

2. CONSULTATION APPOINTMENT
Contact us and arrange a consultation appointment with us. During this appointment necessary details can be clarified. The goals of the appointment include the specification of the distribution box, the definition of the tender text and a cost estimate.

But we will also talk about the following points:

• Determination of the electronics and internals
• Determination of the connection type
• Planning the distributor size and material
• Optimization of distribution variants and quantity structures
• Determination of accessories such as connectors or assembled cables

3. TENDER
You tender the manifolds and accessories.

• You receive a cost estimate from us
• We compile the tender texts - with pleasure also neutrally
• We handle the queries from installers

4.EXECUTION
The executing company orders the required components.

• Appointment of the Wieland project manager
• Preparation of the layout plan and EPLAN
• Final approval of the distributors by signature of the executing company
• Production and routine testing of distribution boxes in accordance with applicable standards and guidelines
• Handover of documents and plans to the contractor

What changes in the installation and the process?

1.EXCELLENCE
You create the cost calculation.

• Requesting a quotation from Wieland in accordance with the invitation to tender
• Possible need for more precise specifications
• Preparation of a net offer in case of an individual customer solution

2.FINAL DISTRIBUTION
After placing the order, order the distributor boxes.

• Appointment of the Wieland project manager
• Determination of structure and wiring - in coordination
• Striving for optimization on the basis of real conditions
• Discussion of the delivery and logistics
• Drawing preparation by Wieland Electric
• Release for production by customer
• Possibly sampling

3. MANUFACTURE AT WIELAND
The manifolds are manufactured at Wieland according to the agreements.

• Processing and, if necessary, coating of sheet metal (plastic)
• Installation and wiring of electronics and other devices, labeling of distribution boards
• Unit testing of the manifolds

4.DELIVERY
The distributor boxes will be delivered to the desired address as agreed.

• Commissioned delivery of the manifolds with further components
• Timely delivery by freight forwarder to the desired address

The software and hardware are parameterized according to customer specifications. Furthermore, labeling and commissioning takes place. Possible products from third-party systems can be integrated. In addition, we will be happy to advise you on the overall concept of decentralized electrical installation.

Yes, the tender texts are designed according to the common agreements.

YOU RECEIVE FROM US:

• Tender texts with direct reference to Wieland Electric
• Neutralized tender texts
• Tenders in the appropriate formats Word and GAEB, other formats on request

Our distribution boxes are available in a wide range of designs, so that we can cover both indoor (IP2x) and outdoor (IP6x) applications.

As standard, our distribution boxes are made of 1 mm sheet steel. For the lid, you can choose between steel plate and acrylic glass. Other materials and coatings for housings and lids are available upon request.

The housing size is customizable to meet your requirements. At the same time, we take advantage of standardization.

Yes, the Wieland distribution boxes can be colored according to your wishes.
