wipos plan
Control & Monitoring for your DC UPS systems
Straight to the download
PARAMETERIZE EFFICIENTLY - MONITOR SECURELY - MAINTAIN PREDICTIVELY
Whether application engineer, maintenance technician, or system integrator – wipos PLAN supports you exactly where it counts:
with the consistent monitoring and documentation of your DC UPS applications – from input voltage and battery status to load supply. Configure, monitor, and analyze your wipos UPS20 systems centrally – from initial commissioning to predictive maintenance. wipos PLAN connects DC UPS, battery, and application into a transparent, controllable overall system
WIPOS PLAN – your control center for DC UPS systems

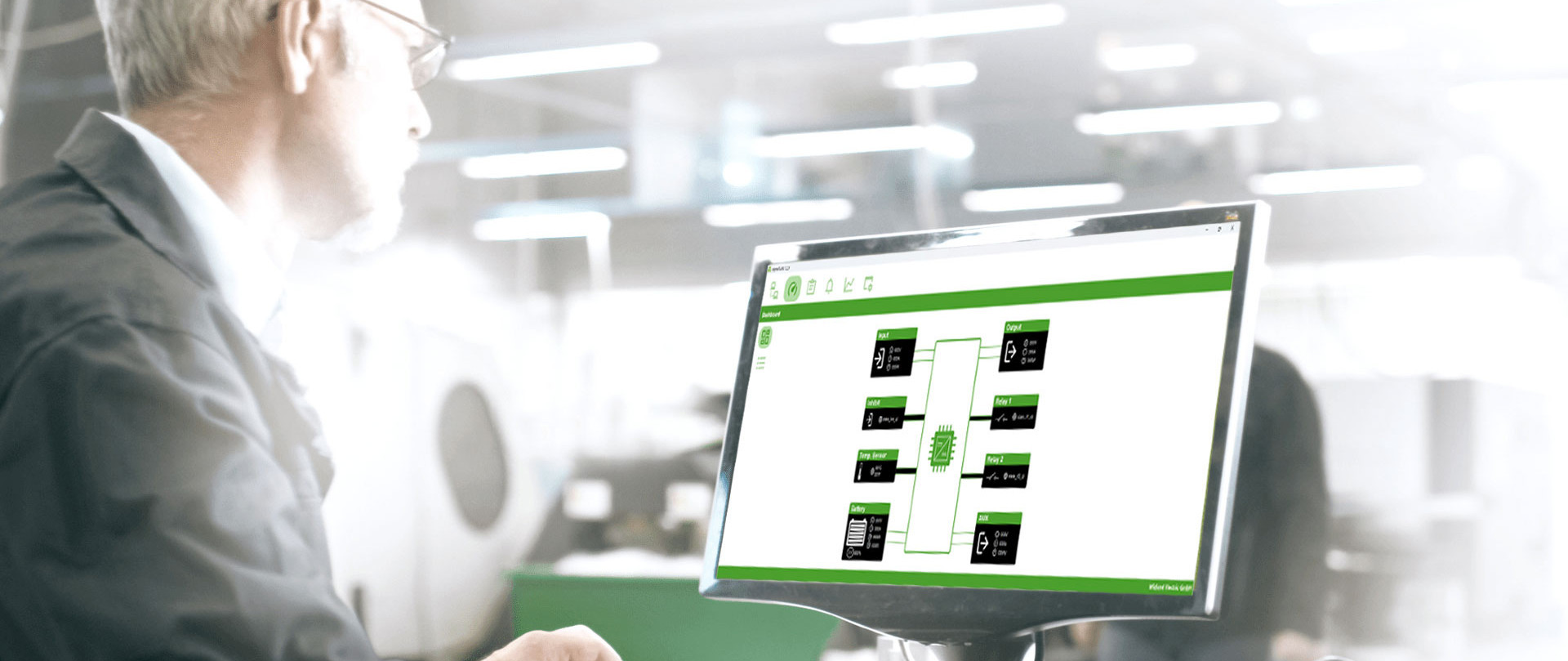

Central control & monitoring center
All wipos UPS20 system values at a glance: input and output voltage, currents, battery status, temperatures, and active alarms. Live display directly from the system – ideal for control room, engineering, or service.
Quick commissioning with Setup templates
Parameterize input and output values, backup times, and switching thresholds once, save the Setup as a template, and transfer it to other devices – perfect for series installations or fleets.
Depth battery diagnostics & health monitoring
Define and monitor battery type, charging and discharging parameters, temperature limits, and internal resistance. This allows you to detect aging or wiring issues at an early stage and protect the battery from deep discharge.
Event log for Service & Maintenance
All events – from information to warnings to errors – are logged with a timestamp in the event log. At least 500 entries in the ring buffer are available for diagnostics, tracking, and reporting. Export as .csv for further analysis.
Comprehensive measurements & logging
wipos PLAN provides internal measurements for inputs, outputs, and the battery circuit. Operating counters, system status, and alarms can be recorded and exported for statistics and long-term monitoring – ideal for predictive maintenance.
Easy integration via Modbus/RTU
Communication is conveniently via USB interface or terminal connection as Modbus/RTU. This allows the UPS to be connected both with wipos PLAN and with higher-level controllers and control systems.
AREAS OF APPLICATION FOR WIPOS PLAN
Wherever DC UPS systems are critical to operations, wipos PLAN provides transparency and security:
Production facilities: Material handling and conveyor systems, robot cells, printing and marking systems
Energy & Utilities: Grid monitoring, measurement and alarm systems, backup power supply
Process industry: material processing, welding and soldering processes, spinning and cutting systems
IT & Communication: Data centers, distribution cabinets, telecommunications nodes, CCTV and surveillance systems
Building and infrastructure technology: Emergency and safety lighting, access control, building automation, fire protection and alarm systems
Download wipos PLAN
Technical details
- Platform: PC software for Windows-based systems
- Interfaces: Modbus/RTU via USB interface or terminal connection of the wipos UPS20 series
- Functions: Parameterization, monitoring, event log, measurement recording, export function (.csv)
- Documentation: Detailed specification and user documentation in the download area of the product page
USE WIPOS PLAN FOR YOUR DESIGN NOW
Take advantage of a central control & monitoring software for your DC UPS applications – from commissioning through ongoing operation to preventive maintenance.
