INDUSTRIAL COMMUNICATION
wienet - Industrial Ethernet Switches
With our wienet switches, we ensure smooth communication in your machine network and provide the optimal infrastructure for the data traffic of your machines.
Managed and Unmanaged Switches - The best product for your machines
Managed Switches
For the best control of your Industrial Ethernet network and fault diagnosis of your data communication, our wienet managed switches are the best choice. We offer you the following functions.
- Remote diagnostics
- Integration into monitoring system
- Detailed evaluation of internal statistics
- Monitoring and error detection
- Prioritization of LAN traffic
Unmanaged Switches
The entry into Industrial Ethernet is particularly easy with the wienet unmanaged switches. Nevertheless, they are completely suitable for industrial use and fulfill all of the following functions - even in continuous operation.
- Quick and easy commissioning
- Small networks and manageable data volumes
- Use in demarcated areas
- Simple interface conversion
- Without remote diagnostics
- Cost-effective
Unmanaged Switches
Easy entry into Industrial Ethernet
Unmanaged Fast Ethernet Switches
wienet UMS-Series
Requirements
- First Industrial Ethernet application or small networks
- Few network nodes and low data flow
- Cost effective solution
- Fast installation through plug & play
Features
- Communication of Ethernet capable devices
- Fixed configuration
- Connection of edge devices in network outlets
- Redundant power supply
- Optionally with Gigabit ports and PoE+ support (UMS-G series)
Unmanaged Advanced Gigabit Switches
wienet UMS-A-Series
Requirements
- Small, stand-alone networks with few participants
- Fiber optic applications: long transmission distances and high bandwidths
- Harsh industrial environment
- Avoid separate power supply
Features
- Power over Ethernet Voltage Boost for PoE+ applications (no separate power supply needed)
- Multifunctional SFP ports for flexible fiber optic applications
- Ambient temperature range from -40°C to +75°C
- Redundant power supply

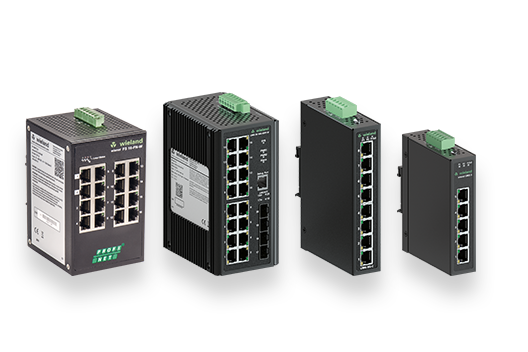

Managed Switches
Full control in the network

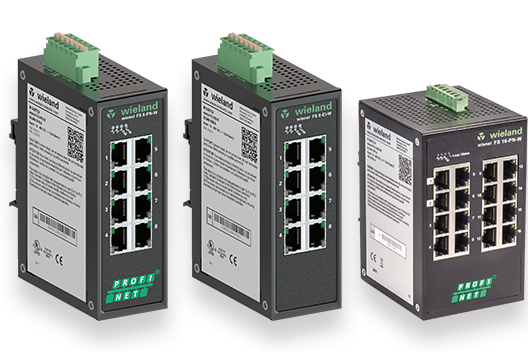

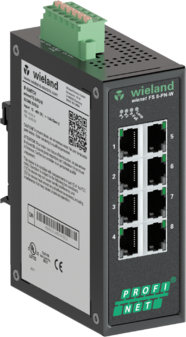

Industrial Protocol Switches
wienet FS-Series
Requirements
- Industrial Ethernet network available (Profinet or Ethernet/IP)
- Information about status of network desired
- Integration in automation environment
- Rough industrial environment
Features
- Diagnosis about quality and load of the network
- up to Ethernet device level and port level
- via LEDs, web interface, SNMP, bus protocol relay alarm outputs
- Redundant power supply with wide voltage input (8.4 to 52.8 V DC)
- Ambient temperature from -40°C to +75°C
- Error prevention during installation by marking with fieldbus logo
Managed Fast Ethernet Switches
wienet L2MS-Series
Requirements
- Large networks with many subscribers
- Need for highest network availability with fast recovery
- Industrial Ethernet network (Profinet to CC-B or Ethernet/IP)
- Fiber optic application available
- Rough industrial environment
- Data with real-time requirements
Features
- Ethernet packet prioritization
- PoE+ support
- EMC level 3
- redundant ring topologies with manufacturing time of max. 20 ms
- redundant power supply with wide voltage input (9-57 V DC)
- diagnostics via LEDs, web interface, SNMP, bus protocol, relay alarm outputs
- ambient temperature from -40°C to +75°C
- Optionally with Gigabit ports and Precision Time Protocol (L2MS-G series)
